Description
OEM-Level Diagnostics for Caterpillar & Perkins Engines

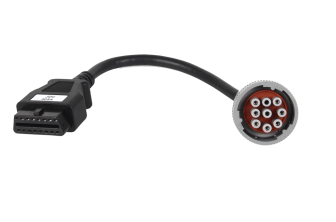

Expand your diagnostic capabilities across heavy equipment and industrial diesels with the Jaltest JDC505A CAT & Perkins Diagnostic Adapter Cable. Engineered specifically by Cojali, this heavy-duty 9-pin adapter bridges proprietary engine diagnostic connectors (prior to CAT’s 14-pin style) directly to standard 16-pin OBD2 main diagnostic cables.
Whether servicing construction fleets, agricultural equipment, stationary power generators, or marine propulsion systems powered by CAT or Perkins engines, the JDC505A delivers reliable, high-speed communication to troubleshoot fault codes, calibrate systems, and perform essential maintenance.
Key Capabilities & Features
-
Multi-Brand Compatibility: Engineered specifically for 9-pin diagnostic ports on Caterpillar and Perkins powerplants across off-highway, agricultural, and marine applications.
-
Full-System Diagnostic Functions: Connects seamlessly to read and clear active/stored diagnostic trouble codes (DTCs), view live telemetry, execute bi-directional actuator tests, and adjust system parameters.
-
Multi-Protocol Support: Native routing for CAT Data Link (CDL), Perkins Data Link (PDL), SAE J1939, SAE J1708, and EMCP generator control units.
-
Industrial-Grade Durability: Built with shop-tested, oil-resistant materials featuring a robust 9-pin round bayonet connector to withstand tough shop and field environments.
-
Cross-Module Integration: Fully compatible with Jaltest OHW, AGV, and Marine software modules paired with Jaltest Link hardware.
Supported Equipment & Protocols
The Jaltest JDC505A cable supports a broad range of global equipment manufacturers powered by CAT and Perkins diesels:
-
Supported Manufacturers: Bobcat, Case CE, Caterpillar, Doosan, JCB, John Deere, Massey Ferguson, Terex, Volvo CE, and more.
-
Supported Protocols: CAT Data Link (CDL), Perkins Data Link (PDL), SAE J1939, SAE J1708, and EMCP generator controllers.
-
Software Requirements: Jaltest OHW (Off-Highway), Jaltest AGV (Agricultural), or Jaltest Marine / Stationary Engines software.
Product Specifications
-
Manufacturer: Jaltest (by Cojali)
-
Part Number / SKU: JDC505A
-
Cable Length: ~30 cm / 12 inches
-
Connectors: 9-Pin Round Bayonet (Engine Side) to 16-Pin OBD2 Female (Tool Side)
-
Application: Off-Highway (OHW), Agricultural (AGV), & Marine Diagnostics
